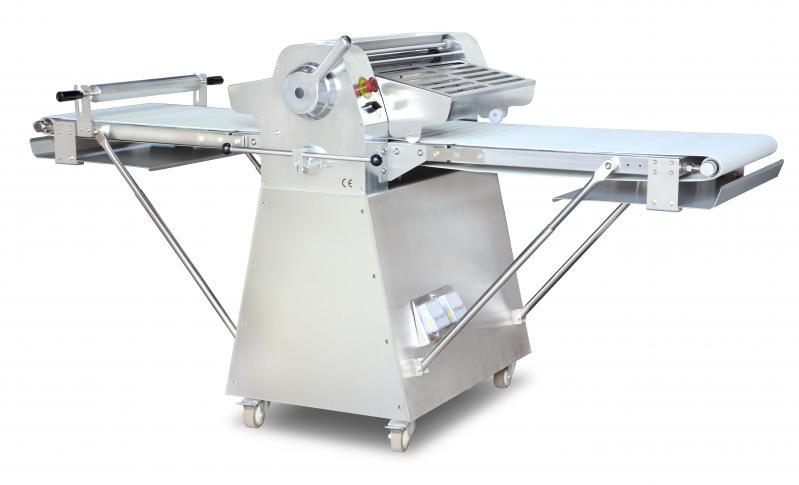

Stainless Steel Floor Model Dough Sheeter with 88-inch Conveyor Length and 0.75 HP

Be the first to rate Stainless Steel Floor Model Dough Sheeter with 88-inch Conveyor Length and 0.75 HP

Item: 44135

Model: BE-CN-2083-FSS

  • Made of high quality stainless steel; ideal use for long period of time
  • Fixed conveyor speed
  • Roller adjustments are manual
  • Suitable for bakeries, restaurants, and hotels
  • Equipped with preset roller thickness control, foldable tables for space-saving storage and retractable end tables

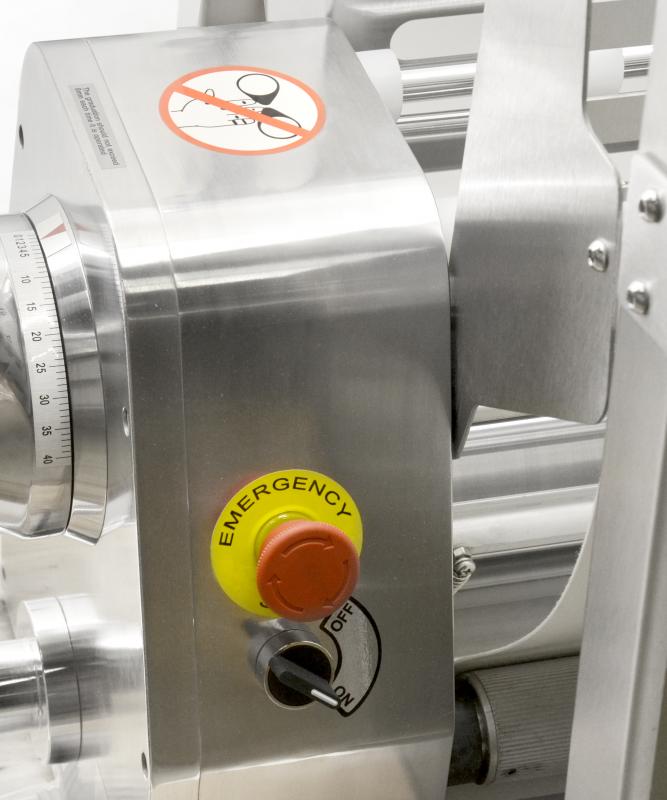

  • Safety features: safety guards, emergency stop switch, thermal overload device
  • Dough sheeter is SUS430 material
  • Bracket board, the base, the safety guard and the tray bar are stainless steel material



UPC CODE
690207441357
WARRANTY
1 Year Parts and Labor
CERTIFICATIONS
QPS
COUNTRY OF ORIGIN
CHINA
SHIPPED BY FREIGHT
YES
GROSS WEIGHT
565 LBS
GROSS DIMENSIONS
48 x 40 x 74 IN
PRODUCT OVERVIEW
Suitable for bakeries, restaurants, and hotels, Omcan's stainless steel floor model dough sheeter is designed for optimal performance. Equipped with safety features, preset roller thickness controls, and foldable tables for space saving storage, this machine increases your bakery's production and efficiency. Safe to operate and easy to clean.
ELECTRICAL: 220 V / 60 Hz / 1 Ph
POWER: 0.75 HP / 0.55 kW
ROLLER SIZE: 3.5" (Dia.), 20.5" (W)
ROLLER ADJUSTABLE GAP: 1 - 35 mm
CONVEYOR BELT WIDTH: 19.75"/ 501.7 mm
CONVEYOR WIDTH: 22.5"/ 571.5 mm
CONVEYOR BELT SPEED: 18m/min - 32m/min
ROLLER SPEED: 124r/min
MAXIMUM DOUGH CAPACITY: 5 kg. / 11 lbs.
WORKING POSITION DIMENSIONS (DWH): 35" x 108" x 46" | 900 x 2750 x 1173 mm
RESTING POSITION DIMENSIONS (WH): 35" x 63" | 900 x 1600 mm
WEIGHT: 419 lbs. / 190 kg.
GROSS WEIGHT: 512 lbs. / 232 kg
GROSS DIMENSION: 37" x 29" x 66"/ 940 x 737 x 1676 mm

Product Q&A

Does the dough sheeter comes with a cutter?
No, the dough sheeter does not come with a cutter.
What is the base made of? Aluminum or stainless steel?
The lower part of this unit is made of stainless steel.
What is the size of the belt?
2160x500mm
Do this unit handle or pedal control?
It is both handle and pedal control
Can you please advise if your dough sheeters are good for fondant?
No, dough sheeters are not good for fondant. The stainless steel roller might roll up the fondant and it is difficult to get them off.
Does it come with 120V?
no
