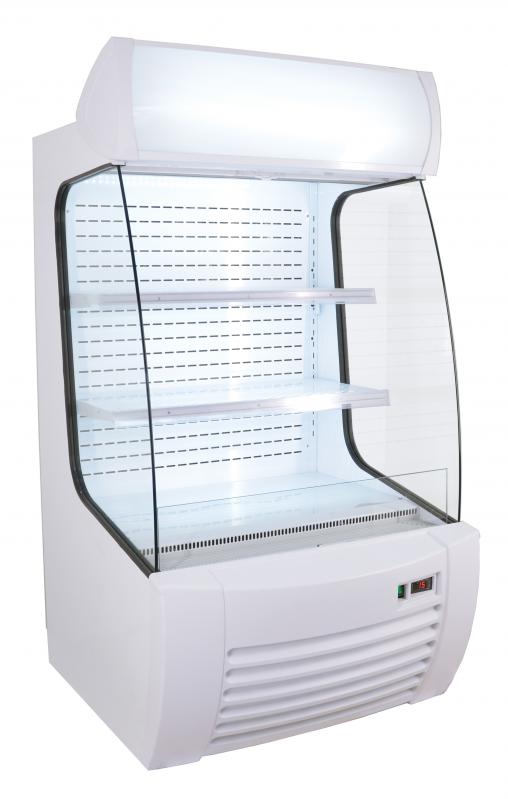

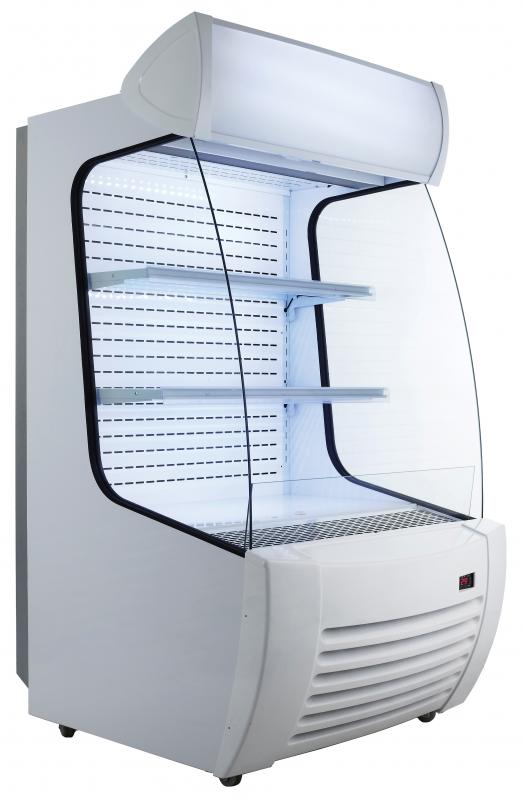

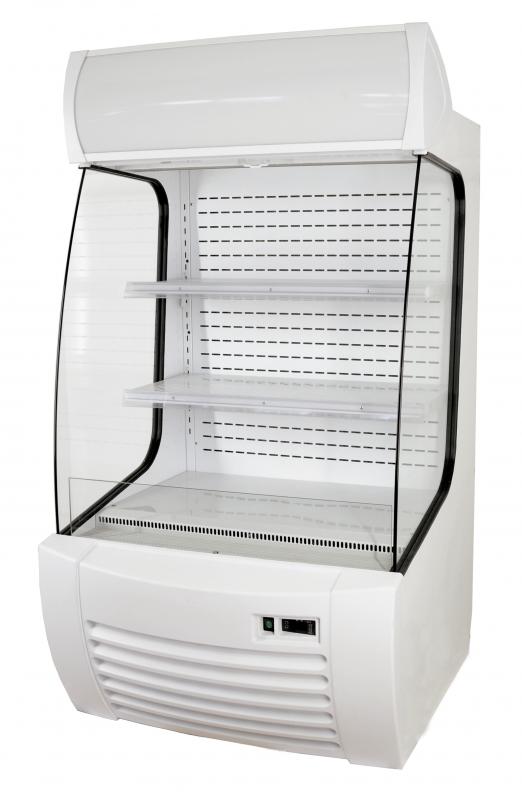

34″ Two (2) Shelf Refrigerated Floor Open Display Case, 12.7 cu.ft (360 L), White
Product Highlights
Exterior front: Plastic
Side panel: Painted steel
LED lighting
Night curtain
Adjustable shelves
Casters with two brakes
Safety glass on each sides
Digital temperature controller & display
Ventilated cooling system
Automatic defrost
Mesh filter in front of the base
Product Overview
Showcase food and boost impulse sales with this Open Refrigerated Floor Display.
Designed for cafes, restaurants, supermarkets, and convenience stores, this unit combines style with functionality. The glass display offers full visibility, while the spacious interior accommodates a wide variety of items.
The open design allows easy access for customers, while the night curtain helps conserve energy after hours. Bright internal LED lighting highlights your products, and the digital temperature controller ensures precise cooling and lighting control. The unit also operates with eco-friendly R290 refrigerant, making it a smart and sustainable choice for any retail setting.
34″ Two (2) Shelf Refrigerated Floor Open Display Case, 12.7 cu.ft (360 L), White
Product Highlights
Exterior front: Plastic
Side panel: Painted steel

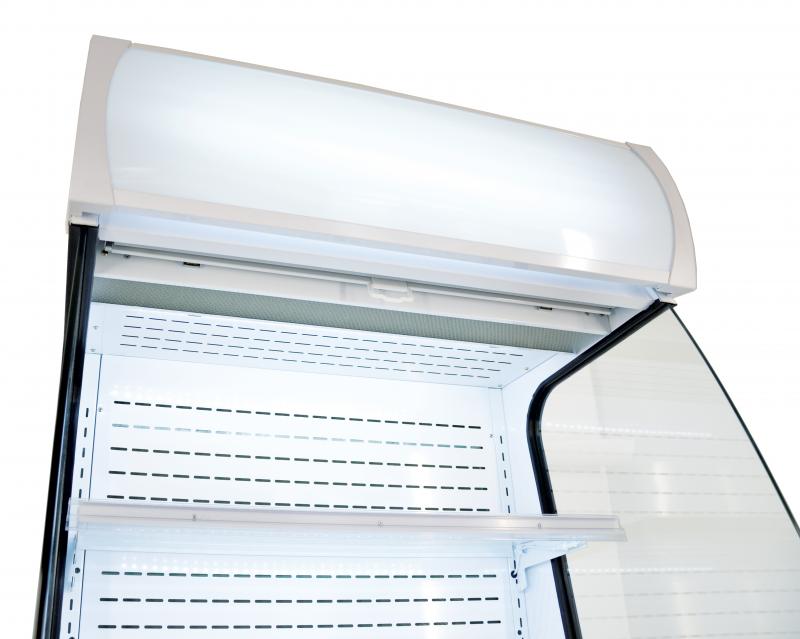

LED lighting
Night curtain
Adjustable shelves
Casters with two brakes
Safety glass on each sides

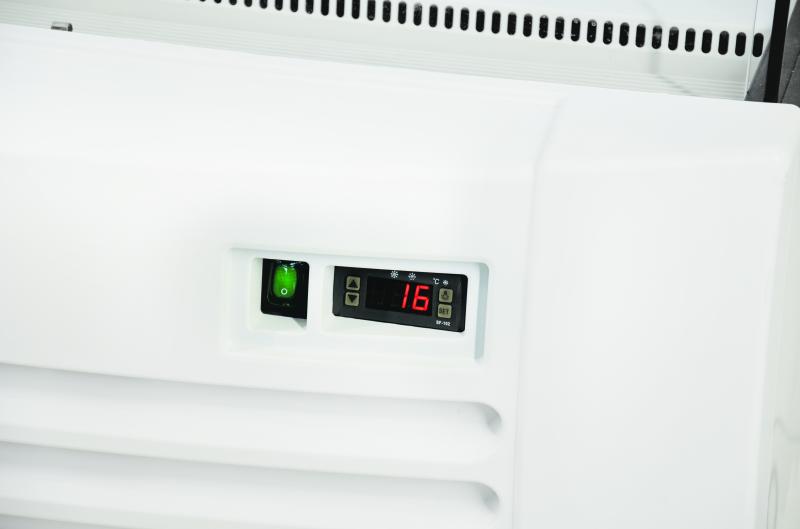

Digital temperature controller & display
Ventilated cooling system
Automatic defrost
Mesh filter in front of the base
Product Overview
Showcase food and boost impulse sales with this Open Refrigerated Floor Display.
Designed for cafes, restaurants, supermarkets, and convenience stores, this unit combines style with functionality. The glass display offers full visibility, while the spacious interior accommodates a wide variety of items.
The open design allows easy access for customers, while the night curtain helps conserve energy after hours. Bright internal LED lighting highlights your products, and the digital temperature controller ensures precise cooling and lighting control. The unit also operates with eco-friendly R290 refrigerant, making it a smart and sustainable choice for any retail setting.
Technical Specifications
Feature | Specification |
Capacity (L / CU. FT.) | 360 L / 12.71 cu.ft. |
Power | 1667 W |
Current | 14.5 A |
Lamp Power (W) | 10 W |
Electrical | 110V / 60Hz / 1Ph |
Electrical Heating Element | 400 W |
Temperature Range | 2°C - 10°C / 35.6°F - 50°F |
Refrigerant | R290 |
Injection | 148g |
Type of Climate | 6 |
Foaming Agent | XPS |

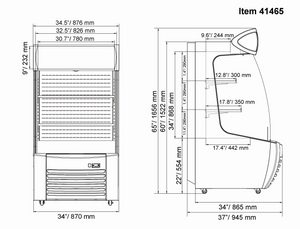

Shelf Dimensions | 30.7” x 12” / 780 x 300 mm 30.7” x 14” / 780 x 350 mm |
Interior Dimensions | 32” x 24” x 34” / 804 x 610 x 871 mm |

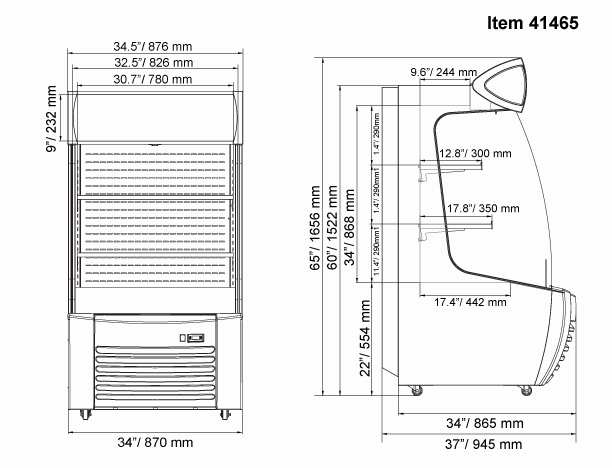

Net Dimensions (WDH) | 334.50” X 37” X 65”/ 876 x 945 x 1520 mm |
Net Weight | 277 lb / 125 kg |
NOTE: This equipment is intended for use in an indoor environment where ambient temperature and humidity do not exceed 26°C / 80°F and 55% relative humidity.
Packing & Shipping Info
- Price LabelPC
- Shipping Dimensions40” X 37” X 67”
- Shipping Weight320 lb
- Country of OriginCHINA
- UPC690207414658
