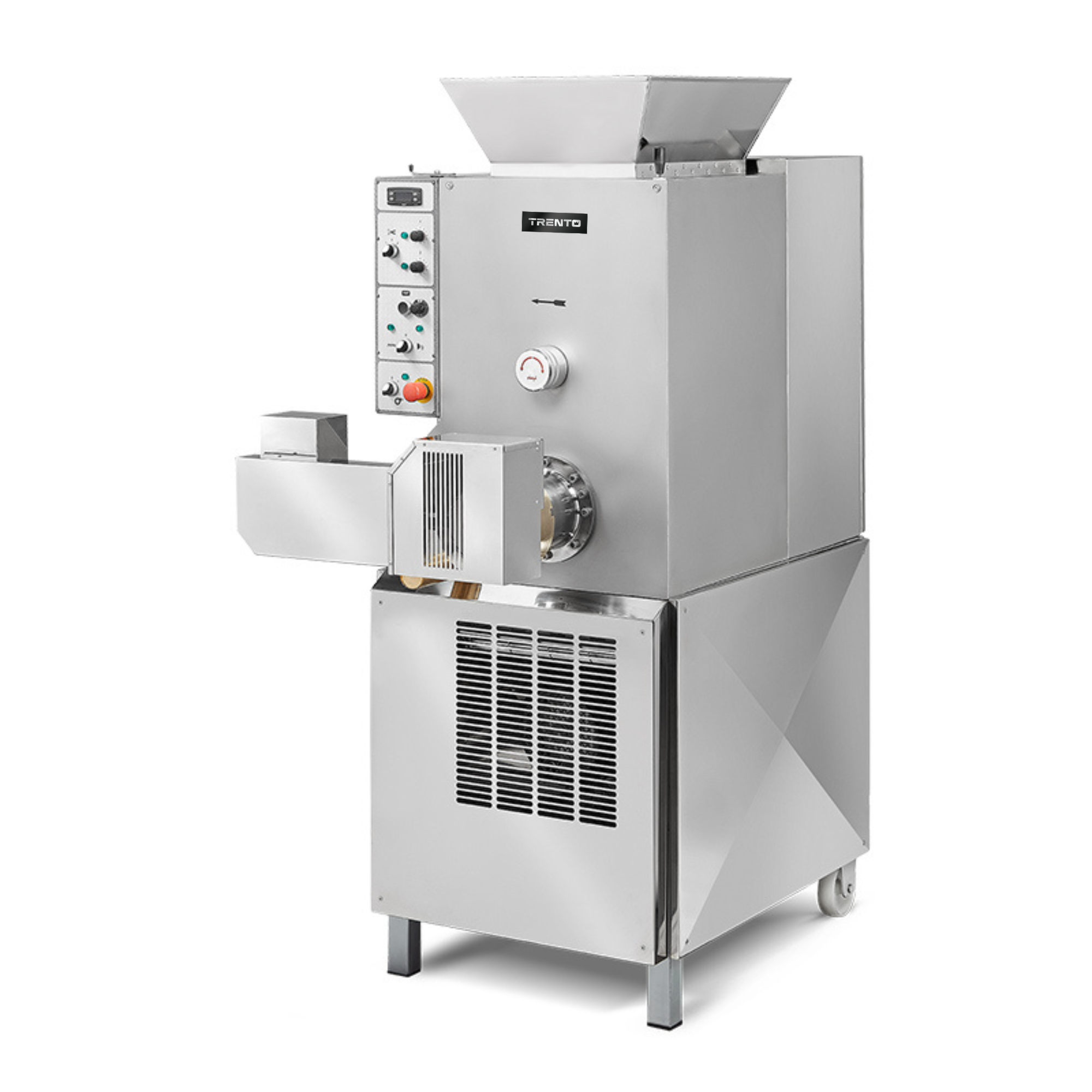

Avancini La Pastaia TR 150 187 lb/hr Heavy-Duty Floor Model Pasta Machine with Cooling System, 208 V, 3 Ph | Trento
Product Highlights
Parts in contact with the product to be processed in stainless steel or material suitable for contact with food
Three-phase power supply
Adjustable working speed
Extrusion sleeve with cooling
Electronic knife for automatic cutting of short pasta mounted on the machine as standard
Pasta drying fan as standard
Working organs with the possibility of rotating in both directions
Easy disassembly of working parts with free access to the machine for complete cleaning
Possibility of producing different pasta shapes by simply changing the die
Available with stainless steel body
Accessories supplied: key for fixing the ring nut, pasta collecting sieve
Accessories on request: automatic knife for long pasta, dies of various sizes
PM-IT-0080 pasta dies can be purchased separately. Click here for more detail.
Product Overview

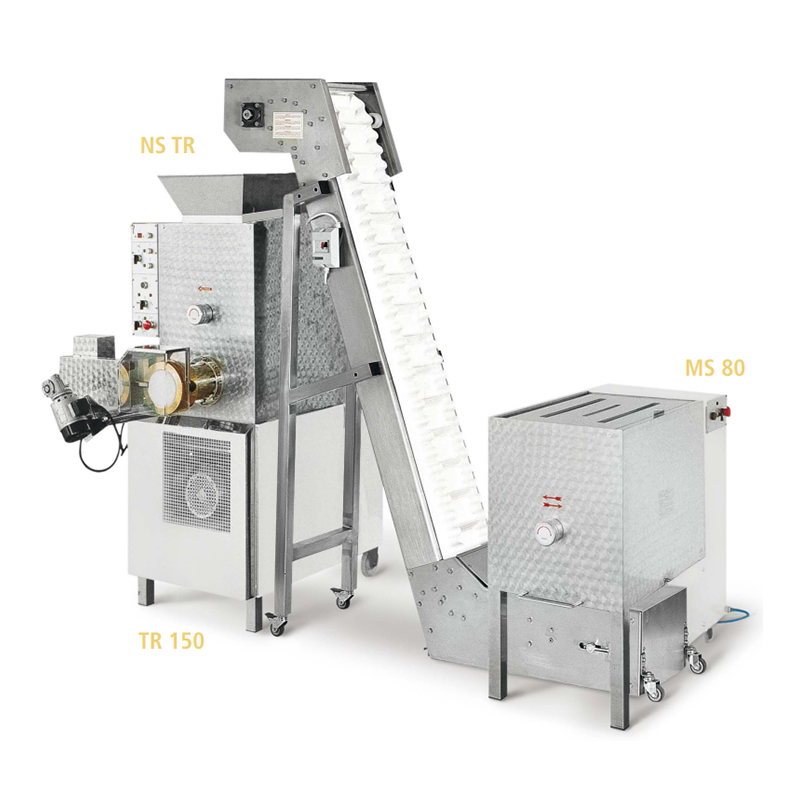

For continuous operation, combining the NS TR Conveyor Belt, Item # 46170 (Optional*) and the MS 80 Pasta Mixer, Item # 46171 (Optional*) can produce a maximum output of 150 kg(330 lbs)/hr.
Important:
Cooling System – The back of the unit with the cooling system feature is equipped with water supply inlet/outlet. Connect the inlet with COLD water connection. Please note that one side to be used as input and other as a drain (Certified Plumber is required). The inlet/outlets are identical, and it does not matter what is used as the supply or drain, as the internal supply is just a loop for the head and die to be kept cold.
Avancini La Pastaia TR 150 187 lb/hr Heavy-Duty Floor Model Pasta Machine with Cooling System, 208 V, 3 Ph | Trento
Product Highlights
Parts in contact with the product to be processed in stainless steel or material suitable for contact with food
Three-phase power supply
Adjustable working speed
Extrusion sleeve with cooling
Electronic knife for automatic cutting of short pasta mounted on the machine as standard
Pasta drying fan as standard
Working organs with the possibility of rotating in both directions
Easy disassembly of working parts with free access to the machine for complete cleaning
Possibility of producing different pasta shapes by simply changing the die
Available with stainless steel body
Accessories supplied: key for fixing the ring nut, pasta collecting sieve
Accessories on request: automatic knife for long pasta, dies of various sizes
PM-IT-0080 pasta dies can be purchased separately. Click here for more detail.
Product Overview
For continuous operation, combining the NS TR Conveyor Belt, Item # 46170 (Optional*) and the MS 80 Pasta Mixer, Item # 46171 (Optional*) can produce a maximum output of 150 kg(330 lbs)/hr.
Important:
Cooling System – The back of the unit with the cooling system feature is equipped with water supply inlet/outlet. Connect the inlet with COLD water connection. Please note that one side to be used as input and other as a drain (Certified Plumber is required). The inlet/outlets are identical, and it does not matter what is used as the supply or drain, as the internal supply is just a loop for the head and die to be kept cold.
Technical Specifications
Feature | Specification |
|---|---|
Max. Hourly Production | 187 lb / 85 kg |
Dough Capacity | 154 lb / 70 kg |
Power | 5.5 kW + 1.5 kW |
Electrical | 208V/60Hz/3 |
Net Dimensions (DWH) | 33.5" x 53" x 63" |
Net Weight | 948 lb |
Packing & Shipping Info
- Price LabelPC
- Shipping Dimensions40" x 60" x 72"
- Shipping Weight990 lb
- Country of OriginItaly
- UPC690207132866
